Getting the size right on your air receiver tank can make or break your system’s efficiency. The tank acts as a buffer between your compressor and production line, storing compressed air to keep pressure steady and prevent constant cycling. But when it’s sized incorrectly, your entire system pays the price in energy waste and wear.
For expert guidance on air receiver tank sizing, placement and flow design, Pneutech provides turnkey support for any system configuration. Call (847) 678-8478 to consult with a Pneutech air system specialist today.

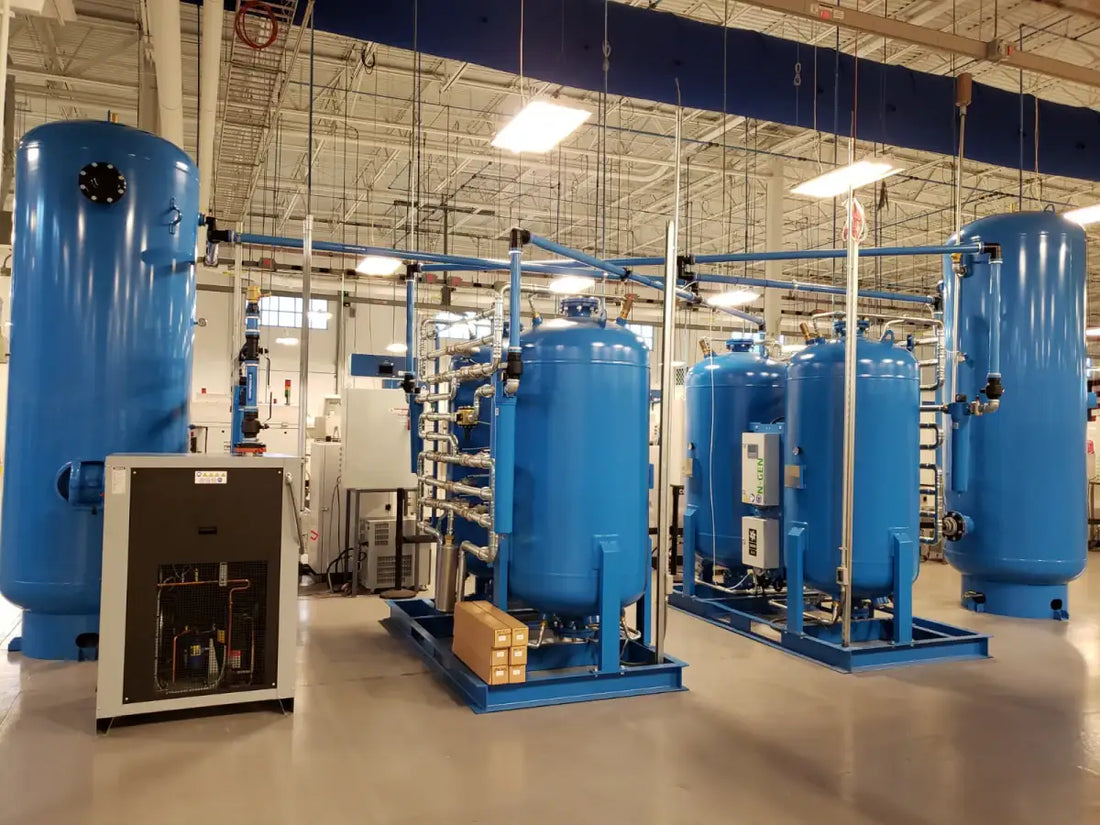

What Is an Air Receiver Tank?
An air receiver tank — also known as a compressed air storage tank — is a pressure vessel that stores compressed air before it’s delivered to your tools, equipment or process lines. Acting as a buffer between the air compressor and the demand side of the system, it ensures a steady supply of air when usage spikes or when the compressor cycles off.
Most industrial systems use two types of tanks:
- Wet tanks are installed before the dryer to remove moisture and contaminants
- Dry tanks are placed after the dryer to store clean, dry air for use.
Beyond storage, air receiver tanks play several critical roles:
-
Pressure stabilization: Maintains consistent pressure throughout the system.
-
Demand balancing: Delivers stored air during high-demand periods.
-
System protection: Prevents short cycling and excessive compressor wear.
-
Moisture removal: Allows water and oil contaminants to settle before the air moves downstream.
In short, the air receiver tank is the “lungs” of a compressed air system: storing energy, smoothing out airflow and improving efficiency across the entire operation.
How Does an Air Receiver Tank Affect Compressor Efficiency?
Proper air receiver tank sizing is essential to balance performance and efficiency: an undersized tank can cause pressure drops and strain the compressor, while an oversized one may waste energy and reduce responsiveness. Correct sizing ensures your compressor runs smoothly, extends equipment life and optimizes overall air system performance.
Wet vs. Dry Air Compressor Receiver Tank Configurations
When designing a compressed air system, tank placement is just as important as air compressor receiver tank sizing. Most systems include one or both types of tanks: wet and dry.
Many industrial setups use both configurations: the wet tank handles initial moisture separation and surge control, while the dry tank maintains final pressure and air quality. Together, these configurations balance energy efficiency with reliability, improving both compressed air storage tank sizing effectiveness and overall system performance.
Key Factors That Affect Air Tank Sizing
Choosing the right air receiver tank size isn’t just about storage capacity; it’s about optimizing performance for your entire compressed air system. Correct air receiver tank sizing depends on several operational and design factors that determine how much air your facility needs, how often and at what pressure.
1. Demand Fluctuations and Peak Usage
Air consumption often varies throughout the day. A larger tank can absorb short bursts of high demand without causing pressure drops or forcing the compressor to cycle excessively.
2. Compressor CFM Rating
Your compressor’s cubic feet per minute (CFM) output determines how quickly air can be replaced. The higher the CFM, the larger the tank needed to store and stabilize output efficiently.
3. Required Pressure (PSI) Stability
Applications that require steady air pressure, such as paint spraying or pneumatic automation, benefit from larger tanks that maintain consistent PSI even when tools or machines operate simultaneously.
4. Duty Cycle and Compressor Type
Reciprocating compressors work in cycles and rely heavily on stored air between runs. Rotary screw compressors deliver continuous airflow but still benefit from a receiver tank to manage system pressure and prevent unnecessary load cycling.
5. Number of Shifts and Equipment Usage
Facilities running multiple shifts or using large air tools require greater storage to maintain productivity without overworking compressors.
As a general rule, start with a safety factor of 3–5 gallons per CFM. This provides a reliable baseline for most industrial operations and can be fine-tuned for specific applications. Facilities with relatively even demand may be able to get by with less storage, while facilities with more variation or occasional large demand peaks may want to size up. Correct compressed air storage tank sizing ensures your system delivers consistent performance, energy efficiency and long-term reliability.
How to Size an Air Receiver Tank Correctly
Finding the right balance in air receiver tank sizing is key to compressor efficiency and stable system performance. While every application is different, there are a few reliable rules of thumb and formulas that can help you estimate the ideal tank size for your operation.
A good starting point is to consider flow demand versus compressor output. Your tank must supply enough air during peak usage without forcing the compressor to start up constantly. For most systems, the recommended sizing ratio is between 4 and 10 gallons per CFM of compressor capacity. This range accounts for variations in duty cycle, pressure requirements and production patterns.
| Compressor Flow (CFM) | Minimum Tank Size (4gal/CFM) | Optimal Tank Size (10gal/CFM) |
|---|---|---|
| 25 | 100 | 250 |
| 50 | 200 | 500 |
| 75 | 300 | 750 |
| 100 | 400 | 1000 |
| 150 | 600 | 1500 |
In larger facilities, a hybrid setup using multiple receiver tanks placed strategically throughout the plant can improve flexibility and response time. A primary tank near the compressor handles pressure stabilization, while secondary tanks closer to end-use points supply localized demand.
Air Tank Placement, Pressure Drops and Flow Considerations
The physical placement of an air receiver tank has a major impact on system efficiency and overall air quality. Strategic layout helps reduce energy waste, maintain pressure stability and extend compressor life.
Key considerations:
-
Distance and piping: Long pipe runs cause friction losses and pressure drops. Place tanks close to the compressor or at major distribution points to minimize loss.
-
Primary vs. secondary tanks: A primary tank is installed near the compressor to stabilize pressure and collect moisture, while the secondary tank is located near high-demand tools or production lines to ensure steady pressure where it’s needed most.
-
Plumbing best practices: Use properly sized piping, isolation valves and check valves to prevent backflow and maintain consistent flow between tanks.
-
System layout: Centralized systems benefit from larger tanks, while distributed setups may use multiple smaller tanks for faster response and reduced pressure variation.
