Experience reliability and efficiency with our membrane nitrogen generators, featuring advanced PRISM® hollow fiber technology. These compact, low-maintenance systems deliver nitrogen purity up to 99.9%, perfect for food packaging, chemical processing, and oil & gas applications.
The TN2 Series is engineered to provide a wide range of flow rates, from 0.5 to 15,000 SCFH, making it a flexible choice for diverse industrial applications. It's particularly suited for harsh operating environments and offers a low-maintenance, efficient solution for on-site nitrogen production.
(SCFH) @ 100 PSIG, 80°F Inlet Air Conditions
| Total Series | 95% Purity | 99.5% Purity | ||
|---|---|---|---|---|
| Inlet Air | Outlet N2 | Inlet Air | Outlet N2 | |
| TN2T0800 | 36.4 | 15.6 | 23.0 | 4.0 |
| TN2T0900 | 62.3 | 25.8 | 39.7 | 5.9 |
| TN2T1000 | 156.0 | 66.7 | 101.0 | 17.6 |
| TN2T1100 | 264.0 | 113.0 | 171.0 | 29.7 |
| TN2T1200 | 468.0 | 200.0 | 303.0 | 52.6 |
| TN2T1300 | 768.0 | 328.0 | 497.0 | 86.5 |
| TN2T1400 | 936.0 | 400.0 | 606.0 | 105.2 |
| TN2T1500 | 1536 | 656.0 | 994.0 | 173.0 |
| TN2T1600 | 1937 | 827.0 | 1253 | 218.0 |
| TN2T1700 | 2304 | 984.0 | 1491 | 259.5 |
| TN2T1800 | 3072 | 1312 | 1988 | 346.0 |
| TN2T1900 | 3874 | 1654 | 2506 | 436.0 |
| TN2T2000 | 4608 | 1968 | 2982 | 519.0 |
| TN2T2100 | 5811 | 2481 | 3759 | 654.0 |
| TN2T2200 | 7748 | 3308 | 5012 | 872.0 |
| TN2T2300 | 9685 | 4135 | 6265 | 1090 |
| TN2T2400 | 11622 | 4962 | 7518 | 1306 |
(SCFH) @ 100 PSIG, 80°F Inlet Air Conditions
| TN2H Series | 95% Purity | 99.5% Purity | ||
|---|---|---|---|---|
| Inlet Air | Outlet N2 | Inlet Air | Outlet N2 | |
| TN2H1200 | 974 | 402 | 661 | 108 |
| TN2H1300 | 1569 | 644 | 1065 | 172 |
| TN2H1400 | 1948 | 804 | 1322 | 216 |
| TN2H1500 | 3138 | 1288 | 2130 | 344 |
| TN2H1700 | 4707 | 1932 | 3195 | 516 |
| TN2H1800 | 6276 | 2576 | 4260 | 688 |
| TN2H2000 | 9414 | 3864 | 6390 | 1032 |
(SCFH) @ 100 PSIG, 80°F Inlet Air Conditions*
| TN₂ Basic Series | 95% Purity | 99.5% Purity | ||
|---|---|---|---|---|
| Inlet Air | Outlet N2 | Inlet Air | Outlet N2 | |

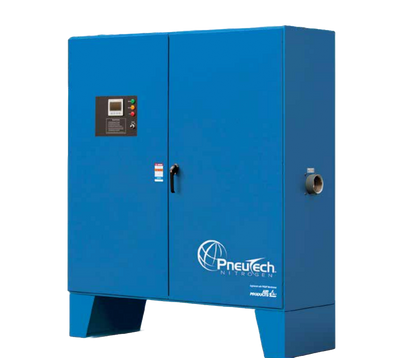

| TN2B0800 | 22.9 | 10.6 | 13.7 | 3.0 |
| TN2B0900 | 38.2 | 17.6 | 23.2 | 4.4 |
| TN2B1000 | 97.1 | 46.0 | 60.0 | 13.2 |
| TN2B1100 | 164.0 | 77.7 | 102.0 | 22.3 |
| TN2B1200 | 291.0 | 138.0 | 180.0 | 39.5 |
| TN2B1300 | 478.0 | 226.0 | 295.0 | 64.8 |
| TN2B1400 | 582.0 | 276.0 | 360.0 | 79.0 |
| TN2B1500 | 956.0 | 452.0 | 590.0 | 129.6 |
| TN2B1600 | 1204 | 570.0 | 744.0 | 163.0 |
| TN2B1700 | 1434 | 678.0 | 885.0 | 194.4 |
| TN2B1800 | 1912 | 904.0 | 1180 | 259.2 |
| TN2B1900 | 2408 | 1140 | 1488 | 326.0 |
| TN2B2000 | 2868 | 1356 | 1770 | 388.8 |
| TN2B2100 | 3612 | 1710 | 2232 | 489.0 |
| TN2B2200 | 4816 | 2280 | 2976 | 652.0 |
(SCFH) @ 100 PSIG, 80°F Inlet Air Conditions
| TN₂BH Series | 95% Purity | 99.5% Purity | ||
|---|---|---|---|---|
| Inlet Air | Outlet N2 | Inlet Air | Outlet N2 | |
| TN2BH1210 | 528 | 254 | 329 | 75 |
| TN2BH1220 | 1056 | 508 | 658 | 150 |
| TN2BH1230 | 1584 | 762 | 987 | 225 |
| TN2BH1240 | 2112 | 1016 | 1316 | 300 |
| TN2BH1310 | 849 | 407 | 530 | 121 |
| TN2BH1320 | 1698 | 814 | 1060 | 242 |
| TN2BH1330 | 2547 | 1221 | 1590 | 363 |
| TN2BH1340 | 3396 | 1628 | 2120 | 484 |

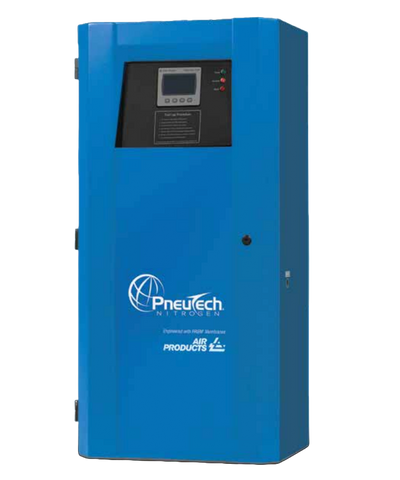

The TNX Series offers a scalable and efficient solution for on-site nitrogen generation. Its expandable membrane technology provides a versatile approach to meet growing demands, making it ideal for a range of industrial applications.
(SCFH) @ 80°F Inlet Air Conditions*
| TNX Non-Heated | 95% Purity | 99.5% Purity | ||
|---|---|---|---|---|
| Inlet Air | Outlet N₂ | Inlet Air | Outlet N₂ | |
| TNX1010 | 90.2 | 43.3 | 55.4 | 12.5 |
| TNX1020 | 180.4 | 86.6 | 110.8 | 25.0 |
| TNX1030 | 270.6 | 129.9 | 166.2 | 37.5 |
| TNX1040 | 360.8 | 173.2 | 221.6 | 50.0 |
| TNX1110 | 153.0 | 73.2 | 93.7 | 21.2 |
| TNX1120 | 306.0 | 146.4 | 187.4 | 42.4 |
| TNX1130 | 459.0 | 219.6 | 281.1 | 63.6 |
| TNX1140 | 612.0 | 292.8 | 374.8 | 84.8 |
| TNX1210 | 270.0 | 130.0 | 166.0 | 37.6 |
| TNX1220 | 540.0 | 260.0 | 332.0 | 75.2 |
| TNX1230 | 810.0 | 390.0 | 498.0 | 112.8 |
| TNX1240 | 1080.0 | 520.0 | 664.0 | 150.4 |
(SCFH) @ 100 PSIG, 105°F, 100% RH Inlet Air Conditions
| TNX Heated | 95% Purity | 99.5% Purity | ||
|---|---|---|---|---|
| Inlet Air | Outlet N₂ | Inlet Air | Outlet N₂ | |
| TNX1010 | 156.0 | 66.7 | 101.0 | 17.6 |
| TNX1020 | 312.0 | 133.4 | 202.0 | 35.2 |
| TNX1030 | 468.0 | 200.1 | 303.0 | 52.8 |
| TNX1040 | 624.0 | 266.8 | 404.0 | 70.4 |
| TNX1110 | 264.0 | 113.0 | 171.0 | 29.7 |
| TNX1120 | 528.0 | 226.0 | 342.0 | 59.4 |
| TNX1130 | 792.0 | 339.0 | 513.0 | 89.1 |
| TNX1140 | 1056.0 | 452.0 | 684.0 | 118.8 |
| TNX1210 | 468.0 | 200.0 | 303.0 | 52.6 |
| TNX1220 | 936.0 | 400.0 | 606.0 | 105.2 |
| TNX1230 | 1404.0 | 600.0 | 909.0 | 157.8 |
| TNX1240 | 1872.0 | 800.0 | 1212.0 | 210.4 |
(SCFH) @ 100 PSIG, 105°F, 100% RH Inlet Air Conditions
| TNXH Heated | 95% Purity | 96% Purity | 97% Purity | 98% Purity | 99% Purity | 99.5% Purity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inlet Air | Outlet N₂ | Inlet Air | Outlet N₂ | Inlet Air | Outlet N₂ | Inlet Air | Outlet N₂ | Inlet Air | Outlet N₂ | Inlet Air | Outlet N₂ | |
| TNXH1210 | 974 | 402 | 908 | 338 | 844 | 276 | 778 | 215 | 707 | 149 | 661 | 108 |
| TNXH1220 | 1948 | 804 | 1816 | 676 | 1688 | 552 | 1556 | 430 | 1414 | 296 | 1322 | 213 |
Onsite nitrogen generation can significantly cut costs by reducing the need for delivered nitrogen, eliminating expenses related to transportation, storage, and cylinder rental. By producing nitrogen on demand, companies can reduce per-unit costs by up to 50-80% compared to gas cylinders, liquid dewars or bulk liquid nitrogen. This investment often pays for itself in as little as 8-18 months, making it a smart financial choice for businesses that require a steady nitrogen supply.
| | TN2 Series | TNX Series |
|---|---|---|
Overview | A flexible system designed for higher flow rates and harsh environments. | An expandable system designed for scalability and space efficiency. |
Purity | 95% - 99.9% | 95% - 99.9% |
Flow (in SCFM) | Basic: Up to 2280 (95%) or 662 (99.5%)
| Non-Heated: Up to 520 (95%) or 150.4 (99.5%)
|
Membrane technology | PRISM® | PRISM® |
Models | Basic: Simple system with high-efficiency dual filter and membrane module | Non-heated: A basic system without moisture control; requires pre-drying of air |
Creating inert environments for reactive materials
Reactor purging, blanketing, transfer operations
Providing clean, dry nitrogen for soldering and assembly
Pipeline purging and tank blanketing operations
Blanketing and packaging of sensitive products
Creating inert conditions for processing
Laser cutting and heat treatment applications
Our membrane nitrogen generators utilize industry-leading PRISM® hollow fiber technology, developed by Air Products and Chemicals, Inc. These advanced membranes selectively allow oxygen, water vapor, and other gases to permeate through the membrane walls while nitrogen flows through the center. This results in a continuous stream of high-purity nitrogen with exceptional efficiency and reliability.
Contact our nitrogen specialists to discover how much you could save with on-site nitrogen generation. We'll analyze your current nitrogen usage, recommend the optimal system for your needs, and provide a detailed cost analysis showing your potential savings and ROI timeline.
A membrane nitrogen generator is a system that separates nitrogen from compressed air using semi-permeable membranes. This compact, efficient technology provides a continuous nitrogen supply at moderate purity levels, making it ideal for applications like food packaging, plastics, inerting and chemical processing.
A membrane nitrogen generator works by passing compressed air through a bundle of hollow, semi-permeable fibers that selectively allow oxygen, water vapor and other gases to diffuse out while nitrogen flows through the system. This process delivers nitrogen gas at specified purity levels in a reliable, continuous stream.
Membrane nitrogen generators are highly energy-efficient, as they don't require additional components like adsorbents or high-pressure cycles, unlike PSA systems. They operate continuously with minimal energy consumption, making them a cost-effective choice for applications with moderate purity requirements.
Membrane nitrogen generators can typically achieve nitrogen purity levels of up to 99.9% with the advanced PRISM® technology used by PneuTech. This range is suitable for many applications, such as food storage and inerting processes, where ultra-high purity isn't essential.
Membrane technologies are generally used for low- to moderate-flow applications. The flow rate depends on the membrane technology used, the size of the membranes, and the number of membrane modules (more membrane surface for gas separation translates to higher flow rates). Flow rate is also dependent on the purity level required; adjusting the system for higher purity nitrogen will reduce the flow rate. Flow is measured in standard cubic feet per hour (SCFH). Our TN2 series is available in flow rates from 0.5 to 15,000 SCFH.
