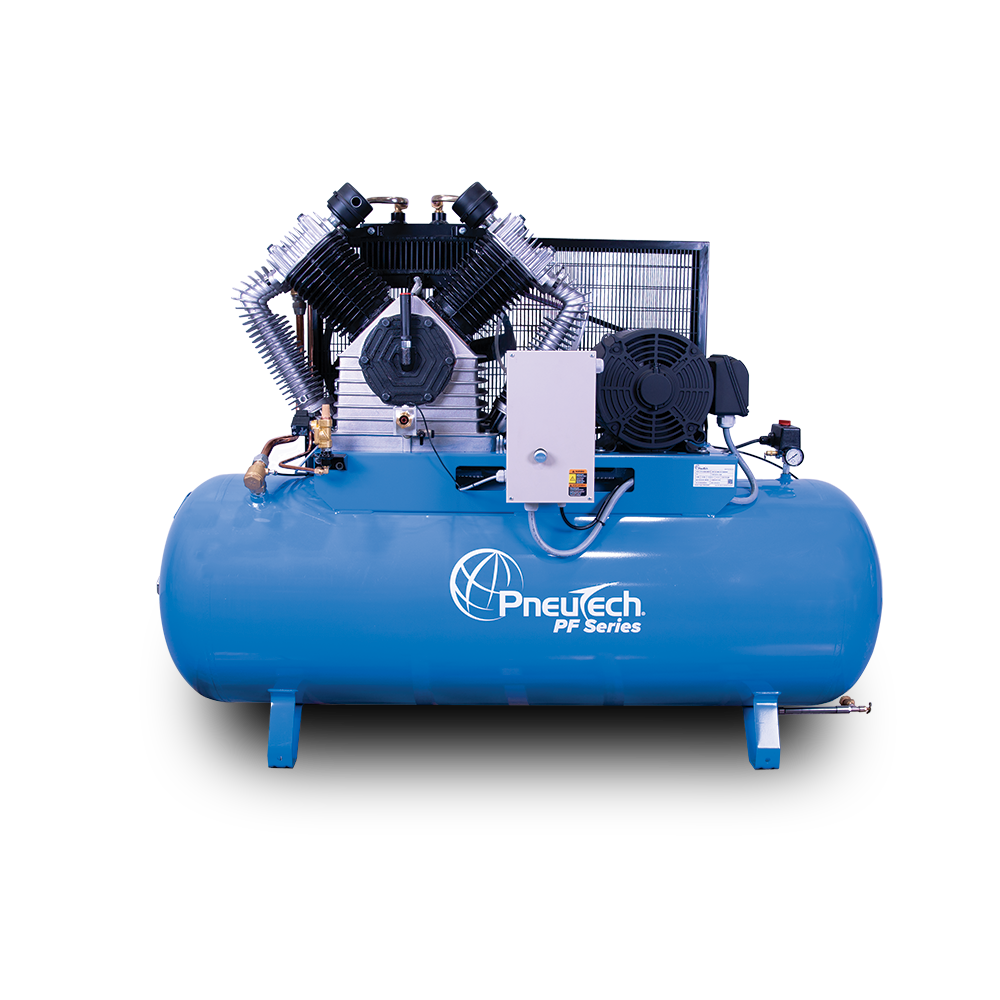

Horizontal Excellence with the PF-10-120GH-230/3-FP Space-Efficient Industrial Solution!

Model:
PF-10-120GH-230/3-FP
Description:
Maximum Performance with the PF-10-120GV-230/3-FP Heavy-Duty Industrial System!
High Quality
Unmatched craftsmanship and superior materials.
Reliability
Consistent and faultless performance guaranteed.
Guarantee & Support
Our promise to address any concerns promptly.
Horizontal Excellence with the PF-10-120GH-230/3-FP Space-Efficient Industrial Solution!
Features
Specifications
Documentation
CFM 38.5
Dimensions LxWxH (in) 38.3x71.7x54.4
HP 10
Pump RPM 880
Tank (gal) 120
Tank Configuration Horizontal
Voltage 230/3
Weight(lbs) 950
Hotspot Image
High-Efficiency Baldor Motor

Equipped with a premium Baldor® high-efficiency motor, this two-stage air compressor delivers superior performance while reducing energy consumption. Renowned for their rugged construction and dependable operation, Baldor motors are engineered to meet or exceed NEMA Premium® efficiency standards—making them ideal for demanding industrial environments.

Low Pump RPM

Our two-stage air compressor is designed with low pump RPM (Revolutions Per Minute) to deliver unmatched durability and quiet performance. Operating at reduced speeds, the compressor pump experiences less wear and tear, significantly extending the lifespan of key components. The slower RPM also reduces heat generation, improving efficiency and allowing the compressor to run cooler under continuous use.

Cast Iron & Crankshaft Pump

Our two-stage air compressor features a rugged cast iron pump engineered for superior strength, durability, and long-term reliability. Cast iron construction provides excellent heat dissipation and structural integrity, allowing the pump to maintain performance even under heavy, continuous-duty cycles.

Performance Air Filter

This filter increases the lifespan of the pump and reduces noise level.

Over-Sized Oil Breather

The centrifugal unloader makes sure that the pump starts with no head pressure. This increases the life of the electric motor.

Large Receiver Tank (ASME Certified)

The large air receiver tank allows for fewer starts and stops. A certified safety valve and pressure gauge are included.

Optional Dual Control

Allows the compressor to run constantly by loading and unloading during periods of high demand, or in standard start-stop mode.

Included with Fully Packaged Units
Air-Cooled Aftercooler

This two-stage air compressor is equipped with a high-performance air-cooled aftercooler, designed to significantly reduce the temperature of compressed air before it enters the storage tank. By rapidly cooling the air, the aftercooler condenses and removes a large portion of the moisture vapor—helping to deliver drier, cleaner air to your tools and systems.

Included with Fully Packaged Units
Low Oil Shutdown

This switch shuts down the compressor if low oil is detected, saving the compressor from catastrophic failure due to running low on oil.

Included with Fully Packaged Units
Automatic Pneumatic Drain Valve

Prevent corrosion and reduce moisture in the compressed air with the pneumatic drain valve, which removes moisture from the tank automatically. This feature enhances the efficiency and reliability of the compressor.
